Installing or replacing a zener diode might seem like a pretty simple procedure but according to this original Triumph service bulletin there is a "recommend" way of doing soon. We will be reviewing the "Triumph way" in today's technical blog post.

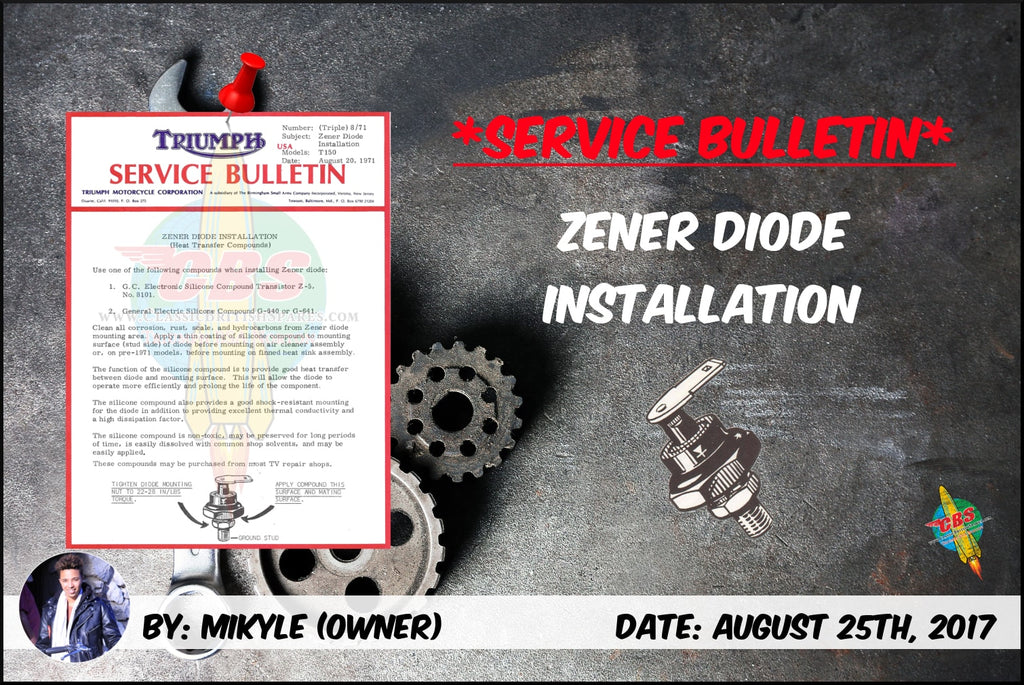

This service bulletin was released to all Triumph dealers on August 21, 1971. Service bulletins where to inform dealers of recalls, changes and updates on various models.

Although this bulletin states its in reference to the T150 models it can be applied to most British marks including BSA, Norton, and other Triumph models.

Let's get right to it...

What is a zener diode?

Lucas Zener Diode

A zener diode is an electrical component that sheds excuses voltage back into the frame when the voltage reaches a certain threshold.

Another common word for a zener diode is a voltage regulator. Every motorcycle or vehicle has some form of a regulator.

Here is a quick quote from wikipedia on what a zener diode is - "A zener diode is a particular type of diode that, unlike a normal one, allows current to flow not only from its anode to its cathode, but also in the reverse direction, when the so-called "zener voltage" is reached."

How to remove a zener diode

Triumph Heat Sink

Heat sink as shown on a 1968 Triumph TR6R. The zener diode lock nut is hidden behind the plastic button

Removing the zener diode from your motorcycle is an easy procedure. Simply get the correct size socket and loosen the lock nut while holding the larger body's nut with a wrench.

Always be sure to keep any washers or lock washers that are used to secure the diode to its mounting surface.

How to install a zener diode

1/4" Drive Inch Pound Torque Wrench by Capri1/4" drive inch-pound torque ratchet

Have you ever mounted a zener diode and to your suprise had the diode snap at the threads?

Chances are you over torqued the diode causing it to break. Yes for those who are not aware there is indeed a torque rating for Lucas zener diodes. (see below for the torque specs)

The installation of a zener diode is a little bit more complex than you might think and it requires more work than slapping it onto your heat sink.

Before installation of a zerner diode it is recommend that the surface that it is being mounted to is clean from debris, oil and rust. Cleaning the surface with a cleaning solvent is recommended. Observe that the ground is clean to ensure a good contact.

If the surface is rusty or corroded we highly recommend that you get a file and remove all debris until metal is exposed. This will give you a better contact with the mounting surface.

Once your surface is clean and ready to be applied it is recommend that you use the proper lubricants. (see below for the recommend lubricants)


Torque rating

Below is the lucas zener diode torque rating. Keep in mind the torque rating is in inch pounds. If you do not have a torque wrench, please be cautious when tightening the diode - stripped threads and broken threads are a very common occurrence.


 Part Type Torque Rating Fitment
Lucas zener diode (6 volt and 12 volt) 22-28 in/lbs All D.C. models


Recommended lubricants

G.C. Electrics 10-8101

G.C. electrical silicone compound #10-8101

Triumph recommends to use one of two types of compounds on the threads and base before installing the zener diode to its mounting surface.

I was not able to find G.E. silicone compound G-640 and G-641 anywhere but I was able to obtain the G.C. 8101 compound.


 Brand Type Product #
G.C. Electrical silicone compound 8101
G.E. Electrical silicone compound G-640 or G-641



Before I discovered this service bulletin I would personally install diodes the same way most folks would - no gauge to measure torque and lack of sealant.

By reading this Triumph service bulletin it has motivated me purchase the correct tools for when I have to service another Lucas zener diode on a vintage British motorcycle.
