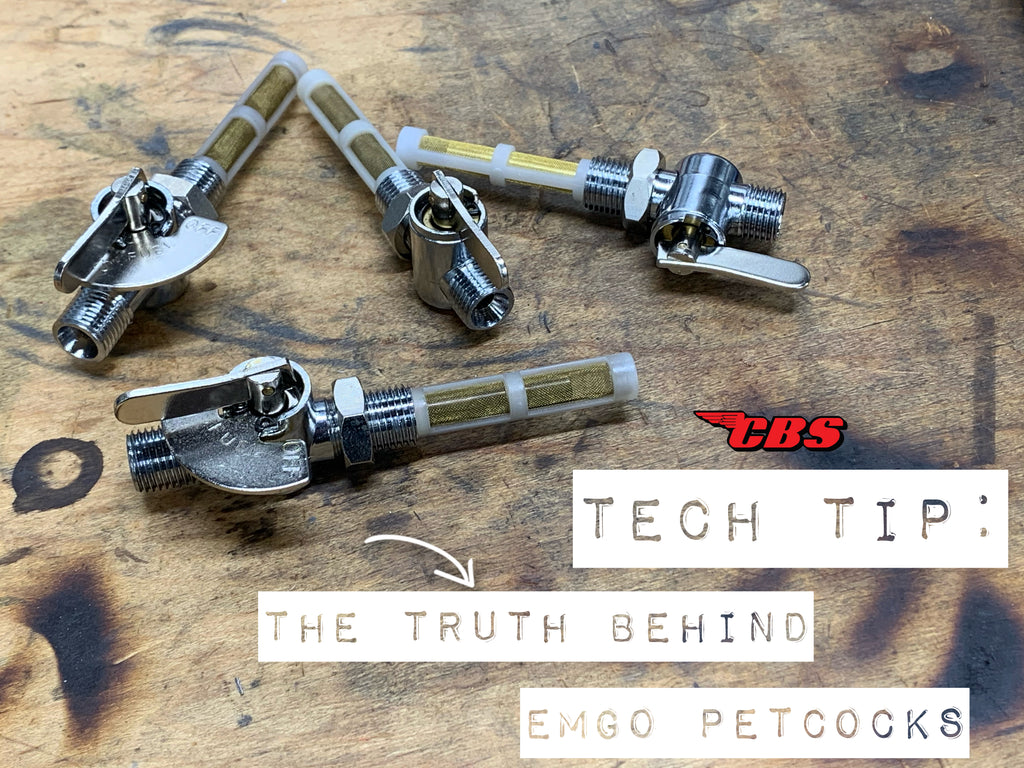

Tech Tip: The Truth Behind EMGO Petcocks

Tech Tip: The Truth Behind EMGO Petcocks

The EMGO motorcycle brand is a leading and popular parts manufacture within our classic British industry

With EMGOs huge manufacturing facility located in Taiwan, EMGO supplies gas tanks, gasket sets, tail lights, petcocks and everything else in between for our traditional Triumph, BSA and Norton motorcycles

Today, we will be covering the topic of petcocks and why we believe that EMGO petcocks are the best petcocks on the market should your tank accept a 1/4" BSPP (British Standard Pipe Parallel) valve

Lets dive in...

Early-mid 2000's

Lets take a trip back in time to the early 2000's

EMGO has been supplying classic British motorcycle petcocks for over 20 years, however, there petcocks didn't always receive a "positive praise"

The older style EMGO petcocks would leak and break down in a short period of time causing gas leaks, sealing issues and "hard to turn levers" that would eventually break off

We even experienced those issues here some time ago which left a bade taste in our customers mouths and even ours

You might even hear some folks say "stay away from EMGO petcocks"

Although they did have a point years ago, I can safe with confidence that opinions and quality have changed since then

The problem (then)

So what caused the EMGO petcocks to leak and break down?

It was simple, it turned out to be the internal parts that were not compatible with the modern fuel

It had nothing to do with the brand or quality, just simply incorrect components for the specific job

Luckily, EMGO listened to the problem and came up with a simple and effective solution that is now implemented on all EMGO British motorcycle petcocks that we stock and that are on the market with other vendors

Keep reading to find out how EMGO made a better petcock..


EMGO petcock tear-down

There are 2 major design benefits of the "updated" EMGO petcock that make them pretty dam good and reliable in which we will cover below using an "off the shelf" EMGO petcock

First lets cover the internal parts followed by the removable filters

Internal metal parts



Inside An EMGO Petcock



The solution that EMGO came up with to fix leaky petcock valves and "hard to turn levers" was by simply changing the components internally

That consisted of metal internal parts instead of plastic parts that would dry and crack which would cause leaks...

Having metal internal parts would also work with the changing fuel blends that are at your local pumps

This new "updated" design is in fact nothing new, and was implemented around 2010 or so and the same process is still being used today



Removable filters



Removable Filters



 Unlike some of the leading brand petcocks (and original petcocks) on the market, the EMGO petcocks give you an option to remove the fuel filter should they need to be cleaned or replaced

The filter features bottom threads while the petcock features internal threads that allow this to be done



My experience

 Most of my Triumph's, and some BSA models that have been converted over to the 1/4" BSPP petcocks are running exclusively EMGO petcocks

My 1968 Triumph TR6R has the "updated" EMGO petcocks which I installed back in 2014 and they do not leak, weep or seep

In fact, the levers are still smooth and easy to operate to this day (even when the bike sits)

Most of our customers that have installed EMGO petcocks have been happy with the quality and price point



Current stock

So from reading above, you heard me throw out the term "1/4 BSPP" a lot

EMGO only makes petcocks that are 1/4" BSPP for our British bikes, however, not all tanks and British bikes can accept a 1/4" BSPP petcock...

1/4" BSPP petcocks are popular on most Triumph applications, and some BSA and Norton (also others)..

1/4" BSPP has a thread O.D. of approx .509" with a thread pitch of 19 (straight threads)

Should your tank accept that size petcock, checkout our current EMGO petcock selection by viewing the chart below



 Petcock type Specs Part # Link
Lever Type 1/4" BSPP X 19 83-2800 Click Here
Lever Type 1/4" BSPP X 19 83-2801 Click Here
Lever Type W/ Flag 1/4" BSPP X 19 60-4511 Click Here
Lever Type W/ Flag 1/4" BSPP X 19 60-4512 Click Here
Sealing Washer Pack Dowty Type 70-7351 & 83-0002 Click Here
Replaceable Fuel Filter EMGO Petcocks Only Click Here



BSA "Ewarts Petcock Conversion"

1/4" BSPP To 3/8" BSPP Adapter

Although this quick paragraph is slightly off topic, I thought now would be a good time to cover our adapters

BSA (and some Triumph) models that where fitted with the push & pull / pull & turn Ewarts petcocks with a spec of 3/8" BSPP can now use the EMGO "flag type" petcocks like shown above if you use our special adapters

This "conversion" will allow you to use an EMGO petcock instead of the older Ewarts (cork) petcocks that will eventually leak and fail

All my BSA singles & twins here at the shop get this "conversion" for practicality reasons

Should you be interested in an adapter for your tank, please see the chart below

Part Type Specs Link
Petcock Adapter 1/4" BSPP To 3/8" BSPP Click Here
Sealing Washer Pack (Recommended) Dowty Type Click Here





Thanks for reading

Thank you for reading today's new post!

Like what you read? Click here to read more posts like the one above

Have something to say? - Feel free to leave us a comment in the section below

Ride safe!


9 comments

  • Classic British Spares

    @Brian – I use the 70-7351 washers by EMGO, no problems

  • Brian Gains

    You sure Dowty washers are ethanol proof ?, I put one in jar of fuel overnight and it swelled up like a scrum halfs ear. Or is it because you use Dowty ‘type’ washers that are ethanol proof?.

  • Eugene Morelli

    I installed a pair of “Updated “ Emgo petcocks several years ago on my Bonneville. One began to leak immediately. The fix was simple though. I pulled the circlip (an improvement over the originals) and the lever. There was a sizable burr left from machining the hole. A little 320 took care of it in a minute. I removed a smaller burr from the other one for insurance. Both have been leak free ever since.

    I wouldn’t hesitate to use them again, but would do this “ounce of prevention “ before installing.
    Eugene

  • Duane Grady

    This is a very good message.
    Its always good to know that a company listens and solves the problems.
    I had petcock issues with a Norton Commando about 15 years ago??
    My current Commando has Emgo units on it and so far no issues so apparently I don’t need petcocks at this time …(I don’t think…LOL) but if I do I will not hesitate to NOT stay away from EMGO.

    Cheers

  • dale mogenson

    thanks for a great article. this is the type of thing british bike owner love to see to avoid making a mistake with our bikes. this makes your company the place to do business with!!!!
