The Amal Concentric Carburetor

Amal Factory -England

Amal factory during the 1950's (source: Amal website)


The Amal Concentric carburetor was designed by the Amal carburetor company in England, in 1967.

The Amal Concentric carburetor was designed to replace the Amal Monobloc carburetor which was then expensive and time consuming to manufacture and also “bulky” in size.

Today, the Amal Concentric is by far the most popular and reliable carburetor one can install on any vintage Triumph, BSA or Norton motorcycle.

The simple design of the Amal Concentric makes it easy to tune, install and retrofit with a very friendly retail price.

Click here for more information on the Amal Concentric carburetor.



What is float height?

Amal Stay-Up Float

The Amal "Stay-Up" float with metal tabs (adjustable)


Every carburetor (except some racing carbs) has some method of metering and shutting or preventing excess fuel from going inside the the float chamber.

A float is a simple yet effective design which is typically manufactured from plastic or a similar material that is ethanol or fuel resistant.


A "float" pivots on a pin which then fuel lifts the float and at a certain threshold it uses a float needle to shut the fuel off (or on) into the float chamber.

Although one might not think of this, a float is very similar to the way a toilet works. Water enters the chamber, fills and lifts the float, and at certain timed event, the float shuts the water off.



Why you should adjust your float level


Float level should be adjusted and optimized for a couple reasons.

  •   To properly shut off fuel entering the fuel chamber

On an Amal Concentric carburetor, if the float level is too high it will cause the float to interfere with the bottom of the carburetor and surprise you with a leaky carb.

When this happens, the float will no longer be able to close the needle in the seat orifice to prevent fuel from entering the carburetor.

  • Adjust the float height to encourage a lean or a rich condition


When working with a new or used carburetor, it is best to start with the float height before you do any type of jetting.

A high float height can cause a very rich condition while a lower float height can cause a lean condition.

Since the Amal Concentric main jet is located in the bowl, metering the fuel level will alter the running condition at a given point.... this also includes the pilot circuit.

Each manufacture (for the most part) will give you a suggested float height specification on a given carburetor. Often times, you can adjust the float height to suit your specific application.

  • Meter how much fuel enters and retained in the float chamber

Under racing applications it is not uncommon to have your fuel level "go low" or "starve".

This typically happens when fuel is being used faster than the fuel entering the float chamber.

To tackle this, you will need to alter your fuel levels and test accordingly.



 Identifying float related parts

Before we launch our tutorial on how to adjust the float height on your Amal Concentric Carburetor lets go over the basic parts and there specific functions.

Amal Float Bowl, Spindle, Needle & Float

    The parts inside an Amal Concentric float bowl



    1. Float - designed to shut-off / meter fuel coming into the float chamber
    2. Spindle - designed to allow the float to freely "pivot" up and down
    3. Needle - float needle is designed to shut off fuel that is coming through the needle seat orifice
    4. Bowl - also know as the float chamber. Designed to hold and retain fuel inside the carburetor



    Adjusting the float height

    Float height specs

    Now that you know the basic parts and functions of an Amal Concentric carburetor we are ready to adjust the float height.

    The first step is knowing where to set the float height.

    Amal Concentric Float Height Service Bulletin - 1973

    Click on the Triumph Service Bulletin above to enlarge / download

    Above we have an original Triumph Service Bulletin dated (7-18-1973) that suggest that the Amal Concentric float height should be .080" below the float bowl surface.

    There are documents online that suggest the float height should be set at .080”, .060” and .040”.

    For this tutorial I will set the float height at .040”.

    Performing the adjustment

    NSK Caliper

     Caliper

    The only tool needed for this adjustment is a caliper and a vice.

    Make sure you have the new Amal "stay-up" float as the metal tabs can be maneuvered to change the float height.

    Using the original white plastic floats will not work with this tutorial as the tabs have "memory"... as you bend the tabs, they will bend back to there original state.

    In the old days, to adjust the float height you would have to raise / lower the seat in the bowl.

    No need to do that as we have the new “stay-up” float.

    Click here should you need the adjustable Amal "stay-up" float for Amal Concentric's.

    Amal Concentic Float Height Measuring

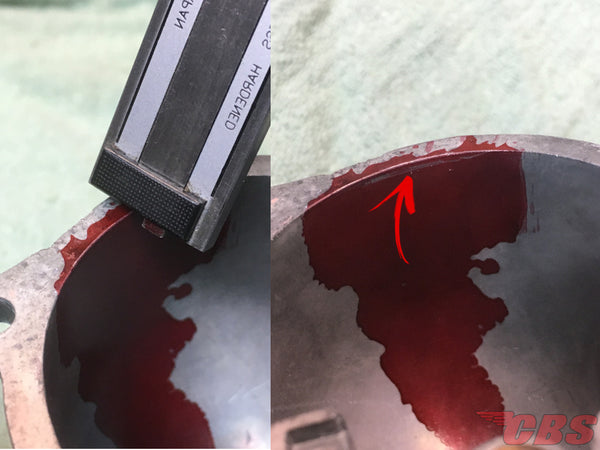

    Coat your Amal Concentric float bowl with red Dykem to showcase the scribed line which is @.040” below the gasket surface.

    With our figures at hand (.040") we will scribe the bottom of the float bowl to indicate where the maximum float height will be. Use the back end of your caliper to do so.

    Now that we know where .040" is in relation to the float bowl, we will install the float, pin and needle together as an assembly to test where our current float height is.

    Measuring

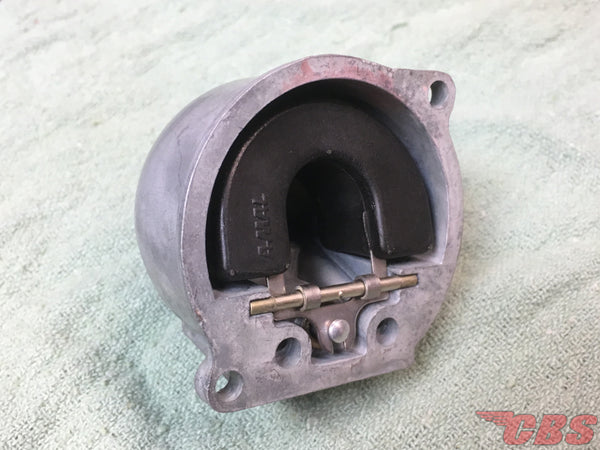

    Float Chamber - Complete

    To test the float height @ .040" first assemble the bowl with all parts installed (off the carb) and flip the unit upside down.

    Float Bowl Upside Down

    While the unit is upside down hold the float bowl with one your left hand and use your thumbnail to hold down on the center of the spindle.

    Do not press or apply pressure on the float or tabs as this will alter your reading.

    When you have this step correct, you will notice that gravity is pushing down on the float and closing the float needle in the seat... this is exactly what you want.

    Float Height

    Take notice of the back edge of the float in relation to the scribe on the bowl.

    If adjusted correctly, the float should be parallel with the scribe mark we scribed inside the bowl as shown earlier in this tutorial.

    That is your float height..

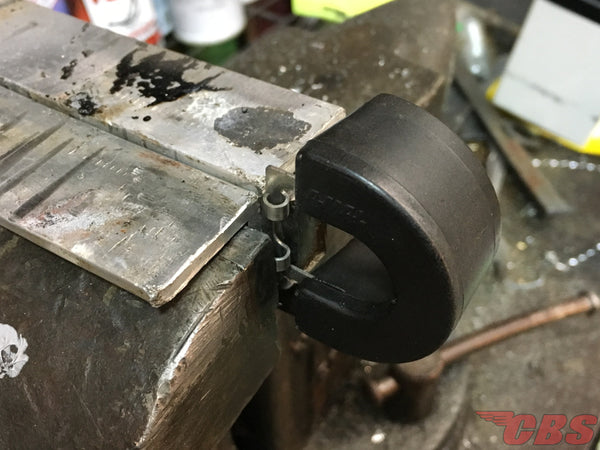

    Bending Stay-Up Float



    If your float level is below or above the .040” scribe mark then you must bend the tab (very gently) on your Amal “stay-up” float.

    Keep checking your work until you get your float to meet with your proper scribe mark.

    Always double check your work!

    Alternative checking - fuel level

    Another alternative to checking, measuring and adjusting float height is to make a jig or a system to physically see the fuel level.

    You can do the steps below on or off your motorcycle.

    This method I will go over below is an accurate way of double checking your work but is not mandatory.

    Instead of setting you float height and staticly checking, you can check via fuel levels as an alternate way..

    Before you begin testing fuel levels you will need some of the following tools / parts to execute the task...



    • Drain plug
    • Auxiliary tank
    • Float bowl (with a drain plug access hole)
    • 1/4" I.D. clear fuel line
    • Complete internals for float bowl (spindle, needle, etc)

    • (1) Main jet (largest size - drill if necessary)
    • 2BA Tap
    • Drill bit for 2BA tap
    • Zip ties
    • Drill
    • Rubbing alcohol



    Lets begin

    On later Amal Concentric carbs the float chamber was introduced with a drain plug. This allowed easy access to change the main jet and drain the bowl rather than taking the entire chamber off the carburetor.

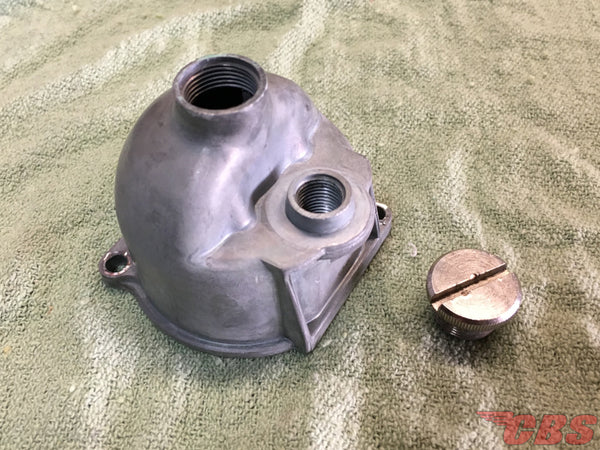

    Amal Float Bowl W/ Drain Hole

    For this tutorial, you will need a bowl with a bottom drain plug if you do not already have one.

    If you do, having a spare drain plug to do this mod is recommended as we will be drilling and threading the plug.

    Drilling and taping

    Using a hand drill or drill press (or lathe) you will have to find the center of the plug.

    From that point you must drill the plug, then cut the threads using your tap.

    Amal main jets are "2BA"

    Drain Plug With Main Jet

    Once the plug is ready, install and tighten your Amal main jet.

    If you have pipe thread tape in your shop, apply it now.

    When done, your plug should look (better) than mine shown above.

    Don't laugh! - I did this many years ago with little tools and no skill!



    Measuring

    Now that your plug is ready, we must measure the fuel level.

    Inside Amal Float Bowl

    Insert the float, needle, and spindle as an assembly as if you where assembling the carb for the final time.

    Use your 1/4” I.D. clear hose and slip it over the main jet that’s threaded into the bottom of your plug and use zip ties to fasten the fuel line as close as you can next to the bowl.

    Install your fuel banjo (single or dual) and connect another section of 1/4" I.D. hose to an auxiliary tank or testing tank.

    If you do not have a separate tank for testing, you will have to feed the line manually.





    Amal Fuel Levels



    Use zip-ties to secure both lines to the float bowl.

    Make sure both hoses are as vertical as possible

    Add alcohol through the feed line (or tank) and watch the float rise until the needle is fully seated (needle must be fully closed).

    As the alcohol is filling the float chamber, you will see the fuel line reflect the level of the bowl.

    Keep adding alcohol into the bowl until the needle "shuts" the fuel off.

    If you notice that the fuel level in the bowl is not correctly reflected in the clear fuel line, you may have an "air bubble" trapped in the line. Remove the air bubble by installing or drilling a larger hole in the main jet, or let the bowl "sit" and the air bubble may clear itself out.

     Float Spindle Held By Weight



    Make sure the float does not "lift" the spindle as it will throw-off your readings - use a wight as shown.

    Monitor the alcohol inside the clear hose.

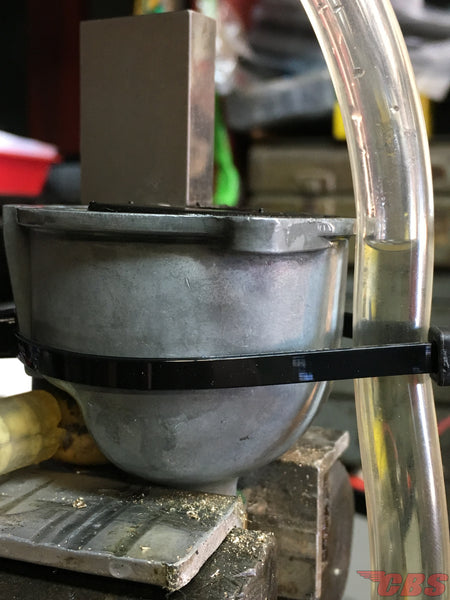

    Since we set the float level at .040” below the gasket surface, the fuel level in the gas line and bowl should sit anywhere .170" - .240" (according to Amal) below the gasket surface.

    Remember, we are measuring fuel levels at this point, not the float height as described earlier.

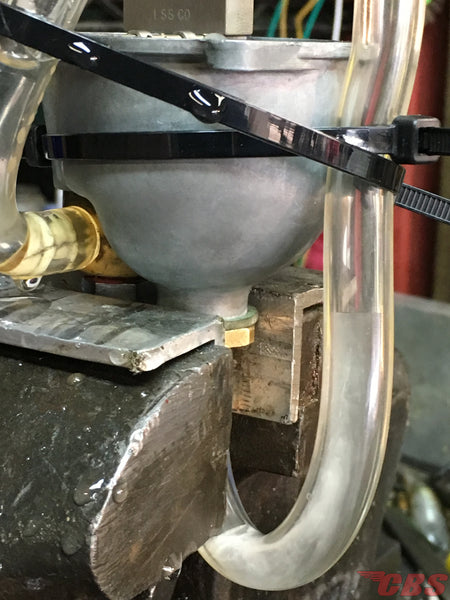

    Gas levels .170" - .240"



    You can choose to mark the float height on the outside of the carb bowl when using this method for checking so you can compare the fuel levels more accurately.

    If either to high or low, make adjustments to the float by bending the tab as described earlier in the blog post.

     When happy with the results, assemble your carb.

    Recap

    Now that you have read the above steps on how to adjust the float level in an Amal Concentric carburetor, now is a great time to put your carb to the test.

    Although I do recommend checking float height, I do not recommend removing your Amal carb or taking your carb apart (that is in good working order) from your machine to perform this test or adjustment.

    This tutorial is great for new carbs, original carbs, or carbs in which you are starting the tuning process from the beginning.

    It is not uncommon to try different float heights. As stated before, if you require an overly rich condition raise the float, lean, lower the float. Be sure to take minor adjustments then check your work.... repeat when necessary.



    Monobloc carbs

    Although this Tech Post was intended for Amal Concentric carbs you can perform a similar test on Amal Monobloc carbs.

    Unfortunately I will not be covering the Amal Monoblocs in this post but in the near future I will dive into checking and adjusting.

    Amal Monobloc Fuel Level Testing Jig

    In the mean time you can enjoy an awesome photo of my Amal Monobloc on a testing jig I made to check the fuel levels.

    Plexiglass was cut to see the fuel level in "real time".

    Replacement parts

    Amal Concentric Parts Diagram

    When performing the float height adjustment, it is vital that all your parts are in good working order.

    If the condition of any parts are questionable, please replace them immediately.

    Here is a compiled list and links of the basic parts inside the Amal float bowl

     Part Type (Name) Part Number Link
    Float Bowl (Concentric) 622/055 Click Here
    Float Spindle 622/071 Click Here
    Float Needle 622/197 Click Here
    Bowl Gasket (Concentric) 622/073 Click Here
    Stay-Up Float RKC/550 Click Here
